Cultivator-Ridgeline-Grass Mower #Page 1 | 2 | 3 | 4

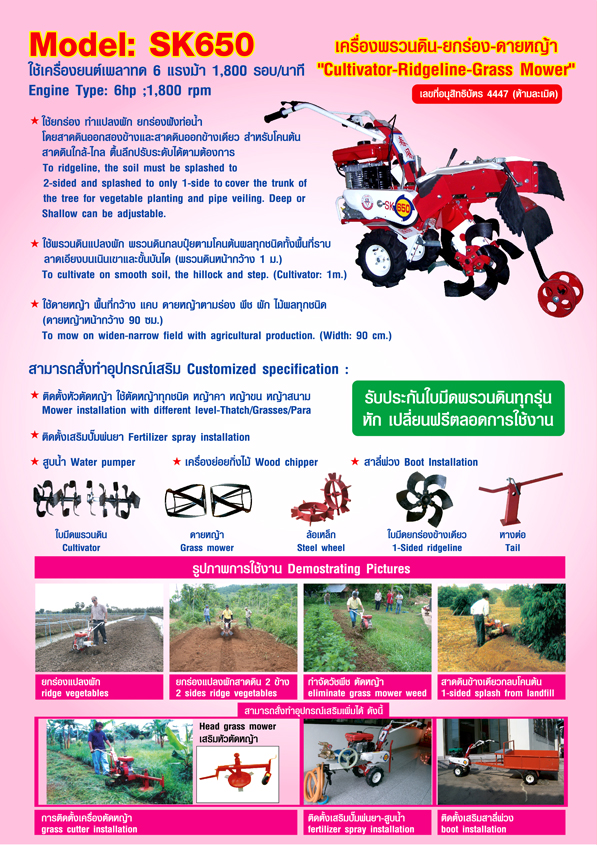

Cultivator-Ridgeline-Grass Mower : Model SK650


    Cultivator-Ridgeline-Grass Mower

Engine type : 6 HP, 1,800 rpm.
- To ridgeline, the soil must be aplashed to 2 sided and splashed to only 1 side to cover the trunk of the tree for vegetable planing and pipe veiling. Deep or shallow can be adjustable.
- To cultivate on smooth soil, the hillock and step. (Cultivator : 1 m.)
- To mow on widen-narrow field with agricultural production. (Wigth : 60 cm.)

Customized Specification :

- Mower installation with different level-Thatch/Grasses/Para
- Fertilizer spray installation
- Water pumper
- Wood chipper
- Boot installation


Technical
Model SK650
Engine KAWASAKI FG 230 G - BT5203 6 HP, 1800 time/min
Model 4 Stroke single cylinder/vale at lateral
Cylinder block/stream - Air release/PTO Shaft 20 mm.
Cylinder
Crush system dry crush
60x47 mm. (232 cc.)
(Spring spindle timing belt)
Blade working condition 2 Gear driving/slow-fast
2 Gear reversing/slow-fast
Blade ridgeline with 4 gear/slow-fast/driving-reversing
Capabilities
Cultivation 10-30 cm. depth/ 90 cm. width
Grass mower 3-5 cm. depth / 90 cm. width
Ridge-U Model 45x30 cm. (WxD)
Ridge-V Model -
Dimension WXLXH (cm.) 80x155x90
Engine Weight (kg.) 20.5
Cultivator weight (kg.) 61
Total weight (kg.) 81.5



Grass Mower

1 Sided Ridgeline

Steel Wheel



Wheel

Cultivator




Fertilizer Spray Installation

Boot Installtion

การดายทรงกลม



Grass Mower

2 Side Ridge Vegetables

1 Side Splash From Landfill



2 Side Ridge Vegetables
