Cultivator-Ridgeline-Grass Mower #Page 1 | 2 | 3 | 4 |
| |

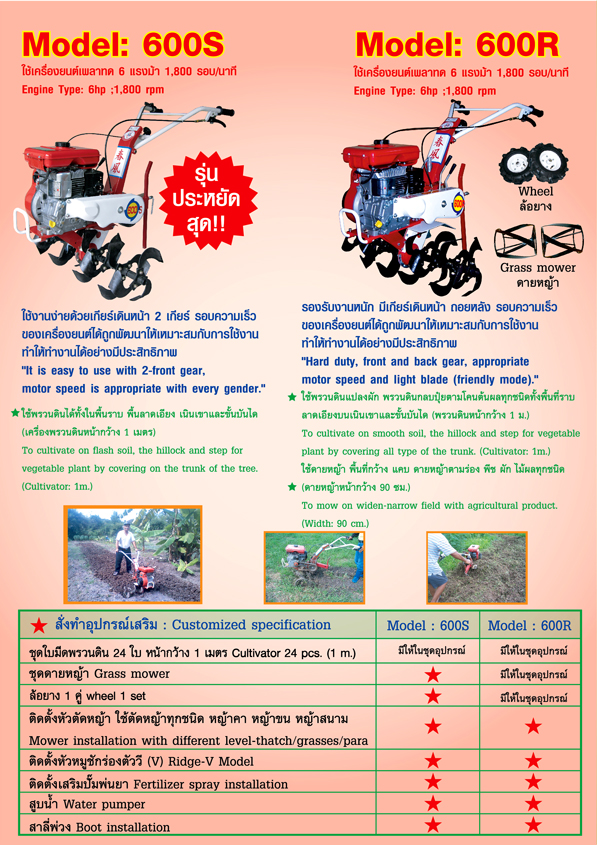

Cultivator-Ridgeline-Grass Mower : Model 600S
|
| |
|
| |
| |
 |
|
"It is easy to use with 2 front gear, motor speed is appropriate with every gebder."
Engine type : 6 HP, 1,800 rpm.
- To cultivate on flash soil, the hillock and step for vegetable plant by covering on the trunk of the tree. (Cultivator : 1 m.)
Customized specification :
- Mower installation with different level-Thatch/Grasses/Para
- Fertilizer spray installation
- Water pumper
- Wood chipper
- Boot installation |
|
|
| |
Technical |
Model 600S |
| Engine |
KAWASAKI FG 230 G - BT5203 6 HP, 1800 time/min |
| Model |
4 Stroke single cylinder/vale at lateral
Cylinder block/stream - Air release/PTO Shaft 20 mm. |
| Cylinder |
64 มม. x 47 มม. (232 cc.) |
| Crush system dry crush |
(Spring spindle timing belt) |
| Blade working condition |
2 Gear driving/slow-fast
-
- |
Capabilities |
|
| Cultivation |
10-30 cm. depth/ 90 cm. width |
| Grass mower |
Customized |
| Ridge-U Model |
- |
| Ridge-V Model |
- |
| Dimension WXLXH (cm.) |
85x125x90 |
| Engine Weight (kg.) |
20.5 |
| Cultivator weight (kg.) |
42.6 |
| Total weight (kg.) |
62.6 |
|
| |
| |
 |
|
 |
|
 |
|
| |
Grass Mower |
|
Cultivator |
|
Wheel |
|
| |
 |
|
 |
|
 |
|
| |
Fertilizer Spray Installation |
|
Boot Installation |
|
1 Sided Splash From Landfill |
|
| |
 |
|
 |
|
 |
|
| |
Grass Mower |
|
Cultivator |
|
Ridge Vegetables |
|
|
|
|
|
