Cultivator-Ridgeline-Grass Mower #Page 1 | 2 | 3 | 4 |
| |

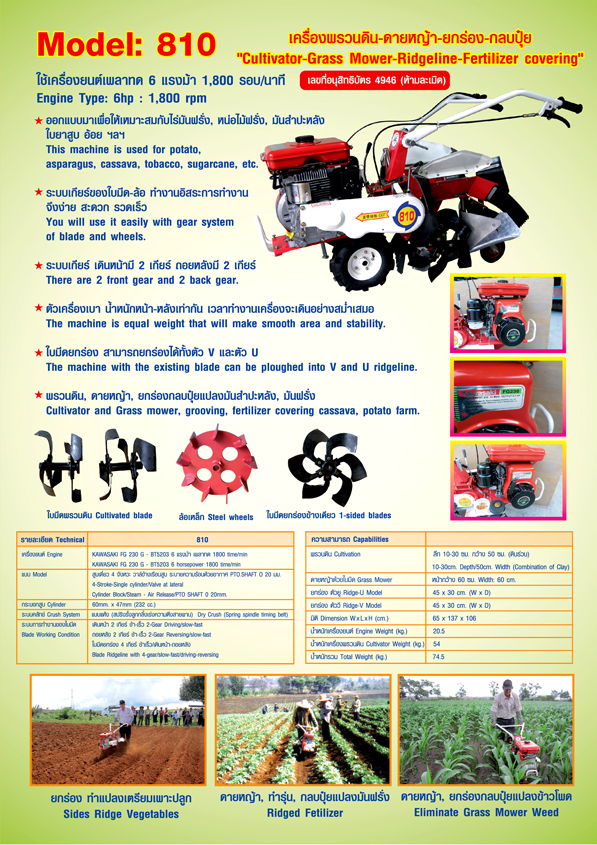

Cultivator-Ridgeline-Grass Mower : Model 810
|
| |
|
| |
| |
 |
|
Engine type : 1,800 rpm
- This machine is used for potato, asparagus, cassava, tobacco, sugarcrane, etc.
- You will use it easily with gear system of blade and wheels.
- There are 2 front gear and 2 back gear.
- The machine is equal weight that will make smooth area and stability.
- The machine with the existing blade can be ploughed into V and U ridgeline.
- Grass mower, grooving, fertilizer covering cassava farm.
- Grass mower, grooving, fertilizer covering potato farm.
- Ridgeline and fertilizer covering cassava farm.
|
|
|
| |
Technical |
Model 810 |
| Engine |
KAWASAKI FG 230 G - BT5203 6 HP, 1800 time/min |
| Model |
4 Stroke single cylinder/vale at lateral
Cylinder block/stream - Air release/PTO Shaft 20 mm. |
Cylinder
Crush system dry crush |
60x47 mm. (232 cc.)
(Spring spindle timing belt) |
| Blade working condition |
2 Gear driving/slow-fast
2 Gear reversing/slow-fast
Blade ridgeline with 4 gear/slow-fast/driving-reversing |
Capabilities |
|
| Cultivation |
10-30 cm. depth/ 50 cm. width (Combination of clay) |
| Grass mower |
- |
| Ridge-U Model |
45x30 cm. (WxD) |
| Ridge-V Model |
45x30 cm. (WxD) |
| Dimension WXLXH (cm.) |
65x137x106 |
| Engine Weight (kg.) |
20.5 |
| Cultivator weight (kg.) |
54 |
| Total weight (kg.) |
74.5 |
|
| |
| |
 |
|
 |
|
 |
|
| |
1 Sided Blades |
|
Cultivator |
|
Steel Wheels |
|
| |
 |
|
 |
|
 |
|
| |
Ridged Fertilizer |
|
Sides Ridge Vegetables |
|
Ridged Fertilizer |
|
| |
|
|
 |
|
|
|
| |
|
|
Eliminate Grass Mower Weed |
|
|
|
|
|
|
|
